High quality Soft PTEF slideway Turcite sheets for CNC Machine

Product Description
Turcite B Sheet

Turcite is a thermoplastic resin used in industrial applications that require reduction of friction on bearings and moving parts.

Turcite is PTFE (polytetrafluoroethylene) resins with added fillers such as bronze, that are extruded into solid billets as opposed to compression molding. Billets are then skived to a nominal thickness in 24" wide rolls, with lengths varying depending on thickness.
One side or both sides are etched depending on application to accept the adhesive.

Turcite is a polytetrafluoroethylene (PTFE) based bearing material with low friction for machine tool industry linear bearing applications.

Glue A and B for turcite sheet


A+B is 1.1KG/set
1 set is for about 2 Meters or so, various a bit for different width.
1 set is for about 3KG turcite or so, but various a bit for different thickness.
You can tell me the turcite size and ask me for calculate how much you need.

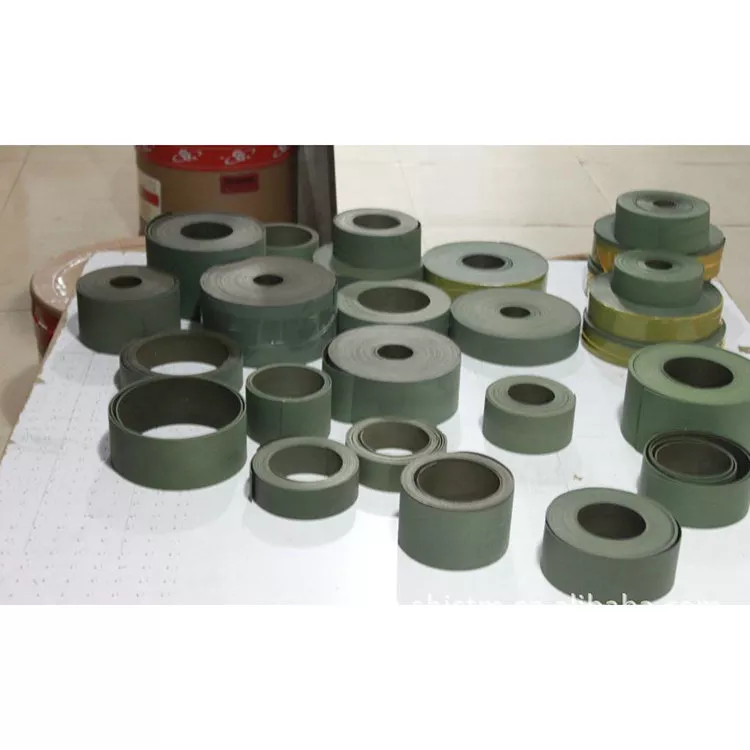

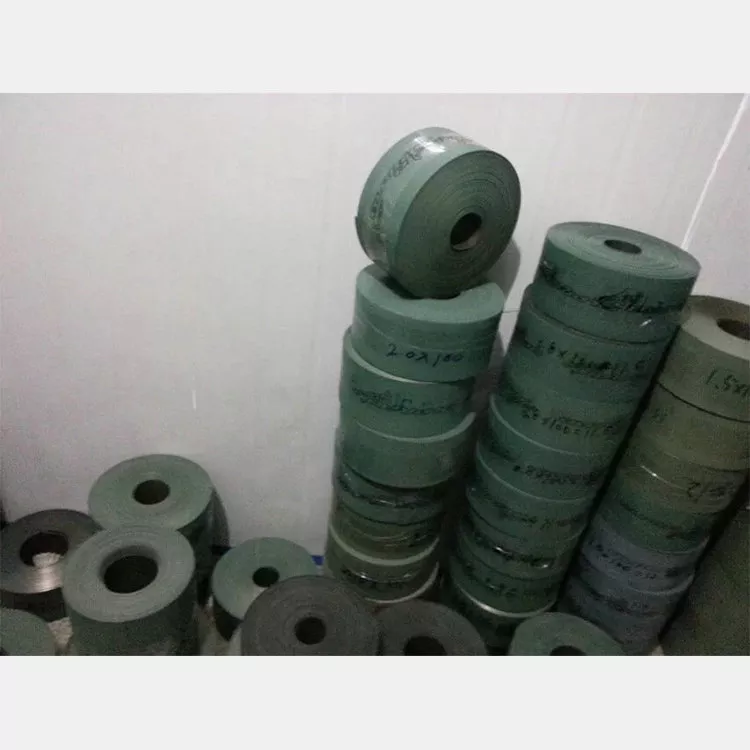

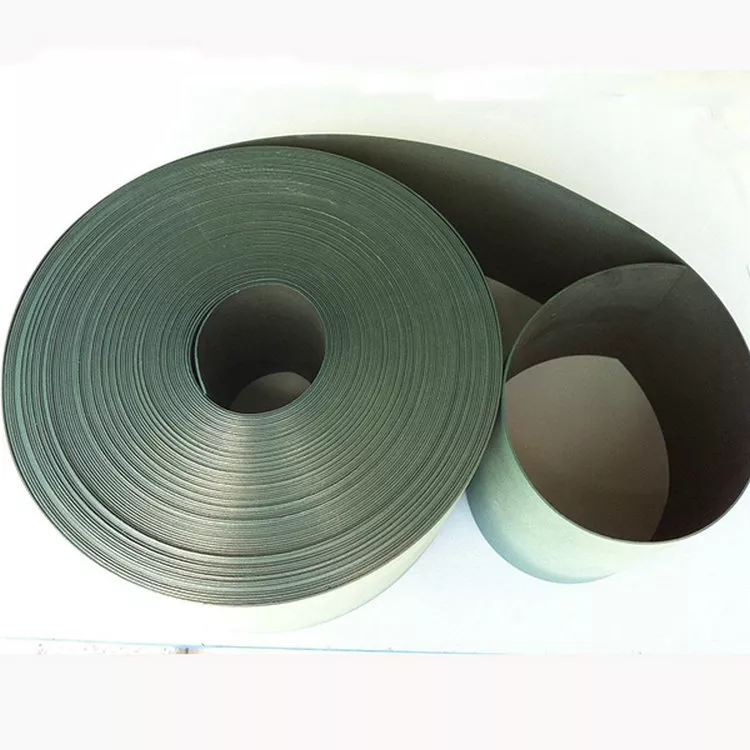

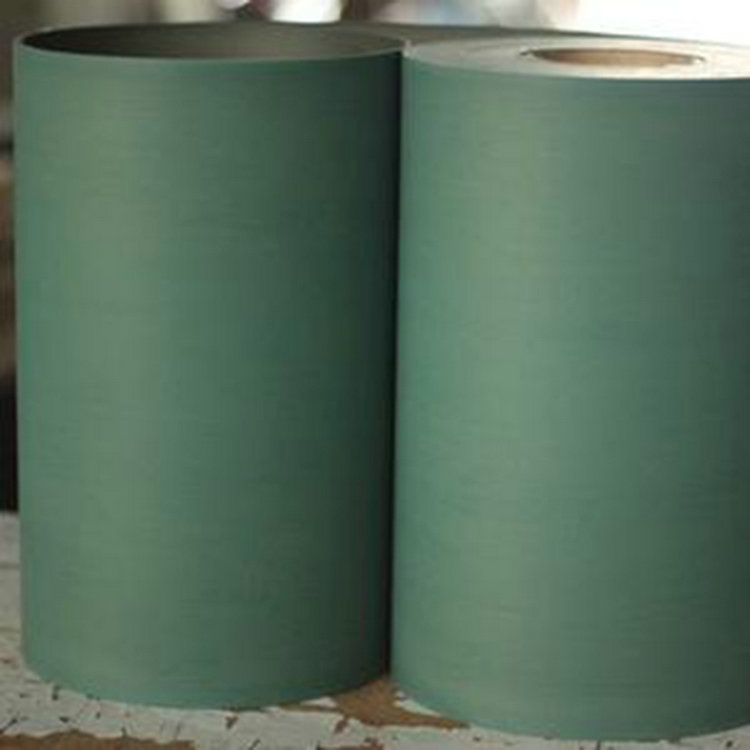

Detailed Images
Property Characteristics
1
High Wearing Resistance: normally ten times of cast iron guide,good accuracy
2
Low Friction: friction coefficient<0.04,only 1/3 of cast iron guide,reducing the driving-energy consumption
3
No Creeping: moving steadily
4
Good Shock-absorbing Ability: improving processing accuracy
5
Good Lubrication

Material
PTFE+bronze
Colour
Blue
Red
Green
Density (g/cm3)
3.4
3.3
3.2
Coefficient of linear expansion (40-120°C)
7.7
7.62
7.5
Tensile strength (Mpa)
17
16
14
Elongation (%)
180
170
150
Compressive strength (Mpa)
33--42
30--40
28---38
Bending strength (Mpa)
25-30
25-30
23--29
Non-notched impact strength (KJ/m2)
>16
>15
>14
Wear(PV=0.7N/mm2.m/s)
0.010-0.020
0.010-0.020
0.010-0.020
Friction loss performance
(dry friction) Friction coefficient (μ)
0.13--0.20


0.15-0.21

0.16-0.23

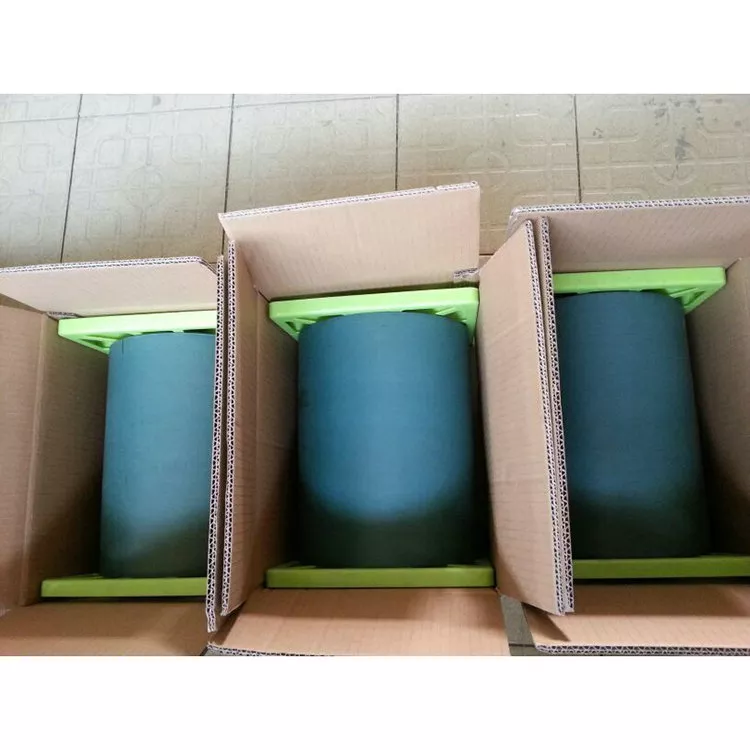

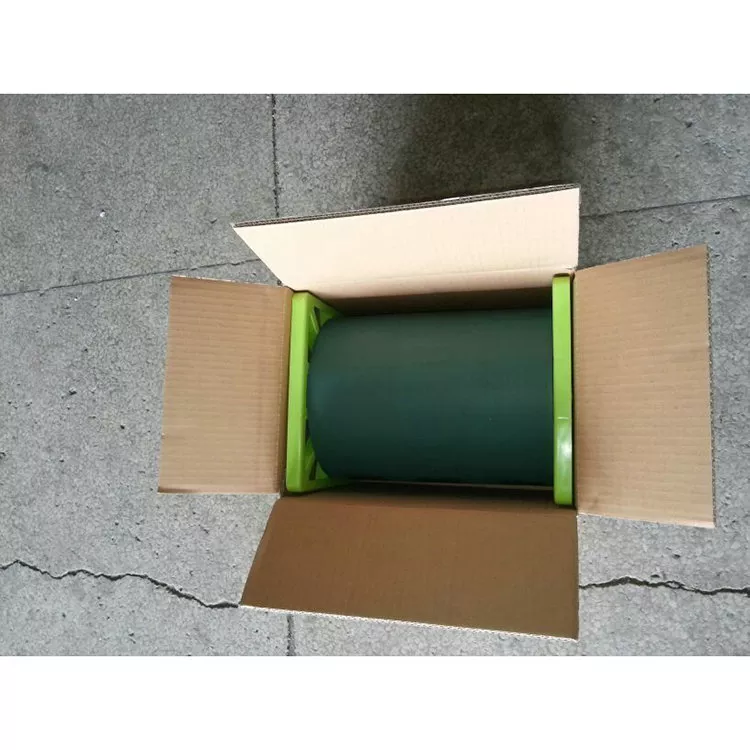

Packing & Delivery
